Hobbywing - XERUN AXE+540 FOC 1200KV
Special Price
CAD $214.99
Regular Price
CAD $289.99
Availability:
In stock
Only 2 left
SKU:
18737
Distributor Number
30401250
Manufacturer Number
30401250

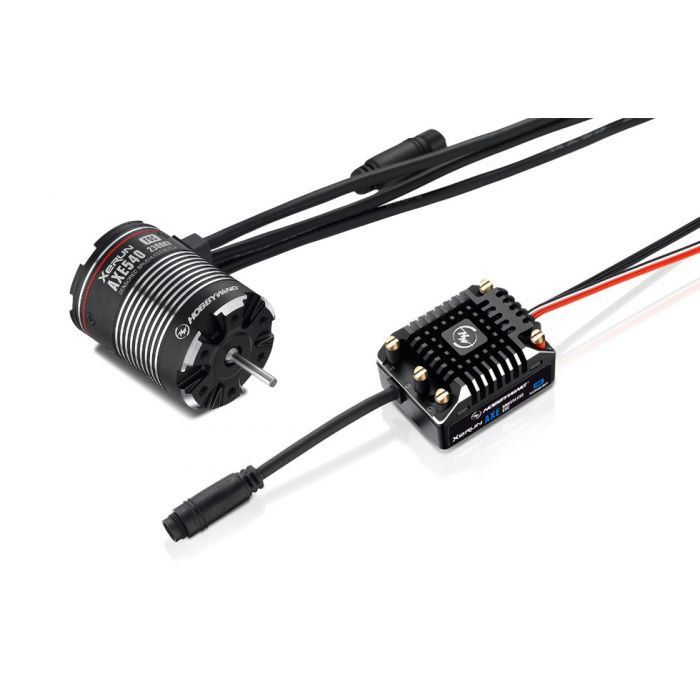

XeRun Axe Brushless Power System
FOC (Field-oriented Control) for Super Linearity & High
Torque & Extreme Slience
New sensor technology has changed the feel, performance, and overall tune-ability of the new Axe ESC and Motor in ways some
have never experienced. Field-oriented Control is the name of this new tech, and is something all new to the scale trail, rock racing,
and rc world in-general. This new style of sensor allows extremely accurate control and sensing of the motor while maintaining
extreme performance and reliability. The motor and ESC are able to match the RPM of the motor to your throttle position under all
driving conditions. This greatly improves down hill driving giving this system the ability to drive down hill under complete control.
FOC technology also makes the whole system extremly silent, the motor doesn't create the annoying PWM noise when it is running.
Specifications
- Product Name: XeRun Axe Brushless Power System
- Product Number: 30112100
Type
Specifications
Wires & Connectors
ESC Programing via
Firmware
Size & Weight
| Motor | 1200KV | 1800KV | 2300KV | 2700KV | 3300KV |
| Part Number | 30401250 | 30401251 | 30401252 | 30401351 | 30401350 |
| Combo Number | 38020248 | 38020249 | 38020250 | 38020277 | 38020254 |
| Poles | 4 | 4 | 4 | 4 | 4 |
| Resistance（Ω） | 0.133 | 0.055 | 0.037 | 0.016 | 0.012 |
| No-load Current （A） | 0.9 | 1.2 | 1.5 | 2.7 | 3.8 |
| Motor Diameter（mm） | 36.0(1.42in) | 36.0(1.42in) | 36.0(1.42in) | 36.0(1.42in) | 36.0(1.42in) |
| Motor Length（mm） | 48.8(1.92in) | 48.8(1.92in) | 48.8(1.92in) | 66.2mm(2.61in) | 66.2mm(2.61in) |
| Shaft Diameter（mm） | 3.175（0.125in） | 3.175（0.125in） | 3.175（0.125in） | 5（0.197in） | 5（0.197in） |
| Shaft Length（mm） | 15.5（0.61in） | 15.5（0.61in） | 15.5（0.61in） | 16（0.63in） | 16（0.63in） |
| Weight（g) | 175（6.17oz） | 173（6.1oz） | 173（6.1oz） | 289（10.2oz） | 284（10.0oz） |
More Information
Distributeur numero
30401250
Numéro Manufacturier
30401250
Country
China
Brand
Hobbywing
UPC
088718519465
