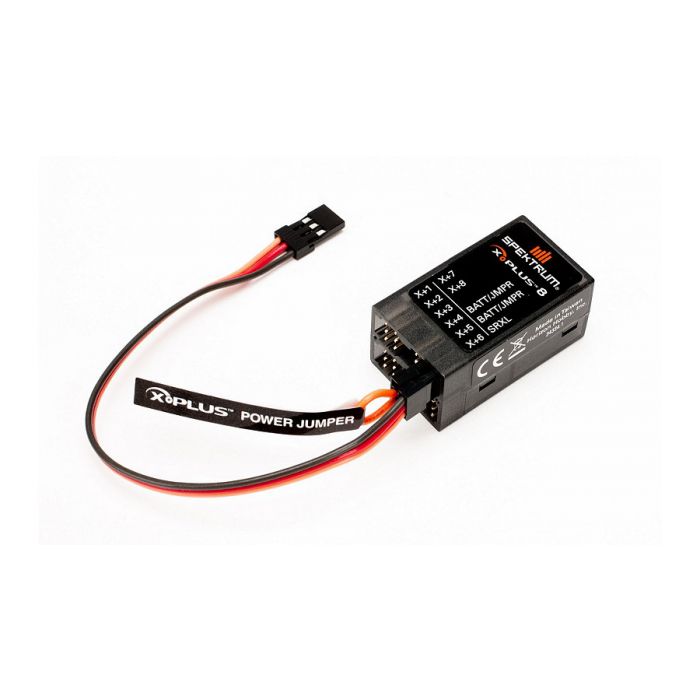

Spektrum - X-Plus8 Expansion Module - SPMXP8000
CAD $188.59
Availability:
Out of stock
SKU:
3530
Distributor Number
SPMXP8000
Manufacturer Number
XP8000
KEY FEATURES
- 8-channel expansion
- Dual battery ports
- Included Jumper offers option of using receiver power
- Allows fine tuning of 8 servos on non-critical controls (bomb drops, lights, winches, gear, etc.)
PRODUCT SPECIFICATIONS
- Type:
- X-Plus Module
- # of Channels:
- 8
- Length:
- 1.61 in (41mm)
- Width:
- 0.91 in (23mm)
- Height:
- 0.79 in (20mm)
- Weight:
- 0.42 oz (11.9 g)
- Voltage Range:
- 3.5-9.6V
OVERVIEW
The X-Plus 8 module is designed to allow expansion of up to 8 servos for non-control surface functions such as bomb drops, lights, winches, retractable landing gear, and many more. The X-Plus 8 is compatible with Spektrum™ X-Plus transmitters and receivers. The X-Plus 8 module offers the option to power the connected servos via dual auxiliary battery ports with separate batteries and switch harnesses (sold separately) independent of the receiver. The X-Plus 8 module can also be powered inclusive of the receiver by using the included jumper through either of the dual BATT/JMPR ports.
Applications
Scale modelers with complex aircraft, ships, or surface applications will enjoy the easy programming and functions of the X-Plus 8 module using X-Plus compatible transmitters AirWare™ software. Modelers will be able to select 2 position, 3 position or potentiometer adjustment through their X-Plus transmitter. After selecting the specific switch or port, AirWare software will allow the individual servo adjustment of each X-Plus channel‘s travel adjust, sub trim, reversing, and speed.
More Information
Distributeur numero
SPMXP8000
Numéro Manufacturier
XP8000
Country
TAIWAN
Brand
Spektrum
UPC
605482056318
