JR - SPG01 QRS Tail Servo: 60-90 (600-700) class
CAD $275.59
Availability:
Out of stock
SKU:
8660
Manufacturer Number
JRPS02417
Specs
Size Category: Standard
Gear Type: Metal
Torque (at 4.8V): 40 - 99 oz-in
Speed (at 4.8V): .05 - .09 sec
Bearing: Dual
Servo Type: Digital
Servo Voltage: 4.8 - 7.4V (High Voltage)
Application: Tail servo for 60- to 90-size (600-700 class) helicopters
Torque: 41.7 oz-in (3.0 kg-cm) @ 4.8V; 63.9 oz-in (4.6 kg-cm) @ 7.4V
Speed: 0.05 sec/60 deg @ 4.8V; 0.03 sec/60 deg @ 7.4V

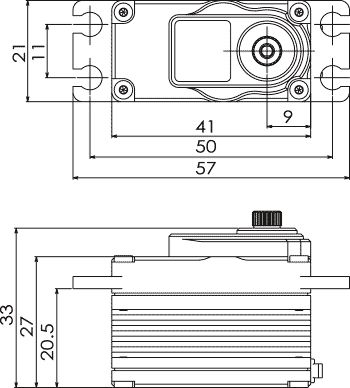

Length: 1.61 in (41mm)
Width: 0.82 in (21mm)
Height: 1.06 in (27mm)
Weight: 1.86 oz (53 g)
Bushing Or Bearing: Bearing
Motor Type: Coreless
Key Features
- One-axis gear system improves precision, while reducing drag and friction
- Special ultra light weight all-metal servo case is 10mm lower than standard servos
- Large diameter coreless motor for increased power
- First in class “High Flow” aluminum cooling fins for enhanced heat dissipation
- JR “Quick Release” system allows for easy servo removal maintenance, and special JR locking mechanism prevents accidental disconnection
Detailed Information
More Information
Distributeur numero
No
Numéro Manufacturier
JRPS02417
Country
TAIWAN
Brand
JR
UPC
4944013024171
