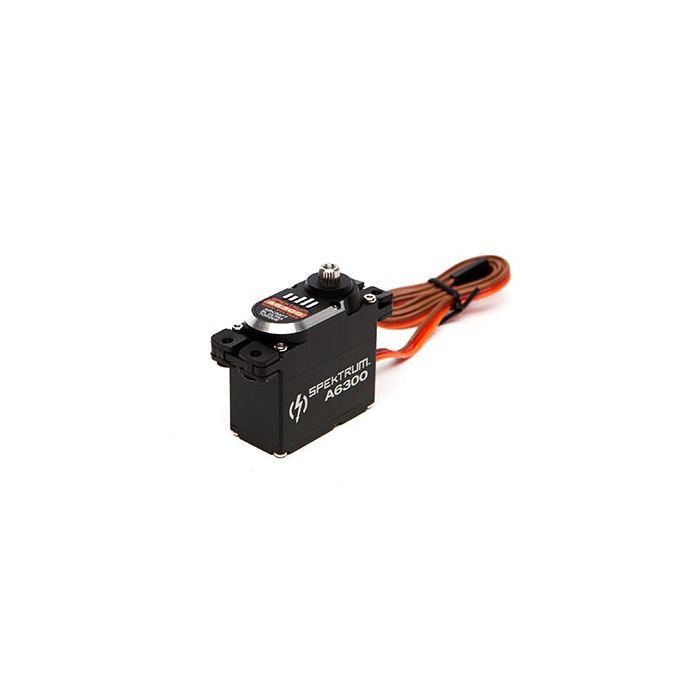

Spektrum - A6300 HV Ultra Torque Brushless Aircraft STD Servo MG 38KG - SPMSA6300

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Special Price CAD $169.99 Regular Price CAD $289.99

Availability: In stock

Only 34 left

SKU:

11958

Distributor Number

SPMSA6300

Manufacturer Number

SA6300

Be the first to review this product

Details

Features

High Voltage (HV) capable (6.0-8.4v input range)
Outstanding torque and speed in a standard servo size (530 oz-in and .10 sec/60° @8.4v)
Durable and long lasting brushless motor
Low wear and tightly meshed all metal gear train
Dual bearing supported drive train helps maximize smooth operation
Aluminum servo case helps keep operating temperatures low
Soft start helps prevent component and airframe damage during un-intentional initializations
Over Current and Temperature protection
Helpful initialization start tone lets pilot know when the servo is ready
Integrated servo failsafe holds last known position if signal is lost
Frequency: 200Hz to 333Hz

Overview

The A6300 is the first in an evolving line of Spektrum brushless servos that provide leading edge performance with uncompromised reliability. Boasting an extremely powerful 530 oz-in torque and a lightning fast .10 sec/60° transit time @8.4v, the A6300 will make RC enthusiasts take a second look at Spektrum Servos.

The A6300 features a top of the line brushless drive train that is recognized as being exceptionally strong and reliable. This durability is expertly matched with a low wear, all metal gear train that is virtually slop free. All housed in a heatsinking, all-aluminum case with preinstalled eyelets and grommets, which makes mounting these servos quick and easy.

The Spektrum A6300 uses these features as a foundation to produce a powerful, consistent, yet efficient servo that will prove to be in a class of its own. It is these awesome capabilities that make the A6300 a fantastic choice for giant-scale models, 3D aerobats, jets or any application where massive amounts of torques and holding power are a must.

Specifications

Size Category: Standard
Type: Digital
Application: Airplane
Torque: 378.37 oz-in (27.26 kg-cm) @ 6.0V; 467.06 oz-in (33.65 kg-cm) @ 7.4V; 530.22 oz-in (38.20 kg-cm) @ 8.4V
Speed: 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
Length: 1.57 in (40mm)
Width: 0.79 in (20mm)
Height: 1.49 in (37.8mm)
Weight: 2.81 oz (79.80 g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Brushless
Connector Type: Z-Connector
Gear Type: Metal
Gear Material: Metal
Voltage: 6.0-8.4V
Deadband: <1ms

More Information

Distributeur numero

SPMSA6300

Numéro Manufacturier

SA6300

Country

TAIWAN

Brand

Spektrum

Torque @ 8.4V

400.00 - 550.00 oz-in

UPC

605482087732
