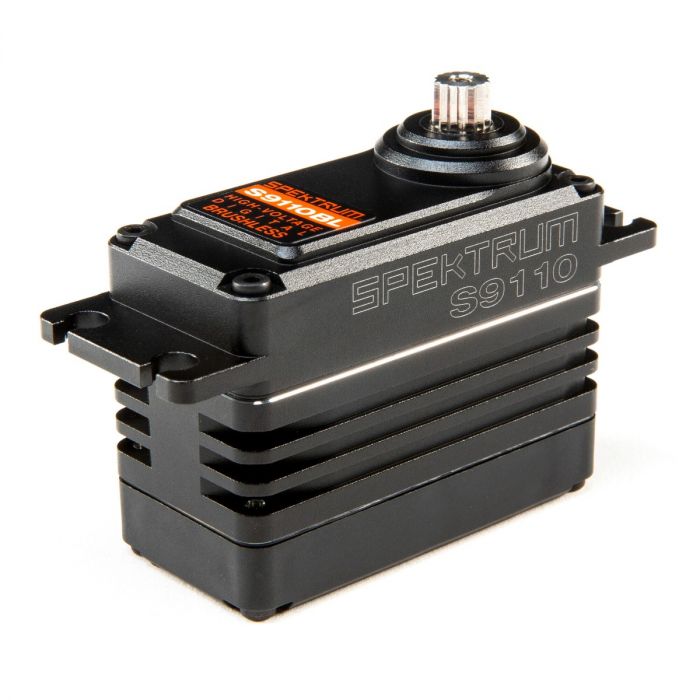

Spektrum - S9110BL 1/5 Digital Brushless High Speed High Torque Metal Gear Servo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

CAD $289.99

Availability: Out of stock

SKU:

17367

Distributor Number

SPMSS9110BL

Manufacturer Number

SS9110BL

S9110BL 1/5 Digital HV High Speed Brushless Metal Gear Surface Servo

Built for serious 1/5 scale performance, the S9110BL is a high-voltage digital brushless servo engineered for speed, strength, and precision. Designed to handle the demands of large-scale RC vehicles, it delivers strong torque output with fast response time and durable metal gearing.

This servo is ideal for steering applications where reliability under heavy load is essential.

Key Features

Digital high-voltage design
Brushless motor for efficiency and longevity
High-speed response for precise control
Heavy-duty metal gears
Designed for 1/5 scale surface vehicles
Strong torque output for large RC platforms

Specifications

Application: 1/5 scale off-road
Bushing Or Bearing: Bearing
Connector Wire Length: 6 in (152mm)
Deadband: Micro sec: <1
Gear Type: Metal
Maximum Servo Torque: 500+ oz-in
Motor Type: Brushless
Product Height: 1.84 in (27.2mm)
Product Length: 2.47 in (62.7mm)
Product Weight: 6.3 oz (178.6g)
Product Width: 1.18 in (30mm)
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Custom
Servo Speed: 0.21 sec/60 deg @ 6.0V, 0.16 sec/60 deg @ 7.4V, 0.14 sec/60 deg @ 8.4V
Torque: 867 oz-in (62.43 kg-cm) @ 6.0V, 981.75 oz-in (70.69 kg-cm) @ 7.4V, 1224.3 oz-in (88.16 kg-cm) @ 8.4V
Type: Surface, Airplane
