The Rapide Rx-R sport glider excels at everyday soaring and extreme aerobatics. Carbon and fiberglass reinforcements make the airframe extremely rigid to handle high speeds. If you're an intermediate glider pilot who's ready to cut loose, the Rapide is right for you!

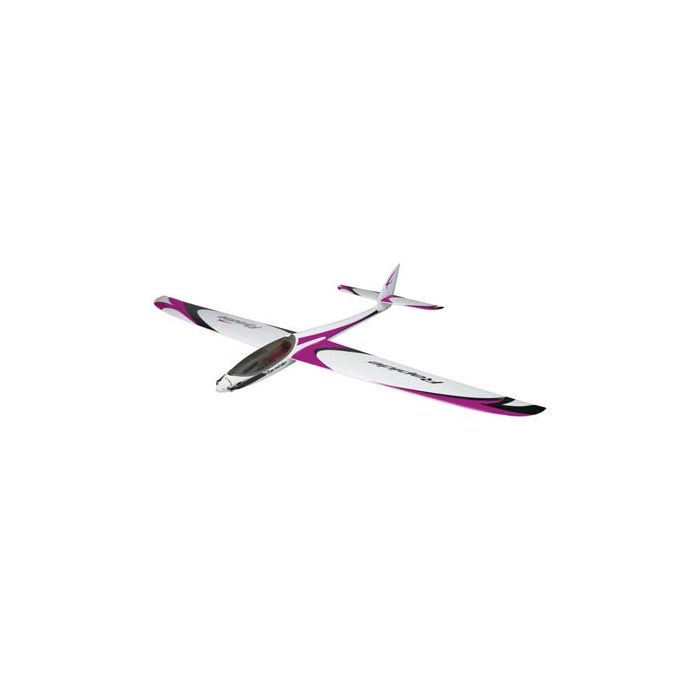

This is the Flyzone Electric Powered, Radio Controlled
RxR (Receiver Ready) Rapide Performance Glider
Includes motor, ESC and servos.

Features

Construction: AeroCell foam, reinforced with carbon and fiberglass
Wing: Two-piece foam, carbon fiber reinforcement, secures to
fuselage with M6x55 wing bolt, flaps may be added, see COMMENTS
Aileron Control: Dual servo
Motor: Brushless 950Kv, 4.6oz (130g)
ESC: 40A 5V3A BEC output, Star battery connector
Servos: Four micro (2-ailerons, 1-rudder, 1-elevator)
Propeller: 13.5x7 folding
Warranty: Flyzone guarantees this kit to be free from defects in both
material and workmanship at the date of purchase. This warranty
does not cover any component parts damaged by use or modification.

Includes

RxR (Receiver Ready) Rapide Performance Glider with Brushless Motor,
ESC, four Micro Servos, Propeller and Instruction Manual

Requires

Radio: 4-6 channel
Battery: 3S 11.1V 2200mAh LiPo recommended
Battery Charger: Balancing charger compatible with selected battery
LiPo Charging Bag, field equipment

Specifications

Wingspan: 60" (1525mm)
Length: 42.5" (1080mm)
Wing Area: 364 sq in (23.5 sq dm)
Weight: 2.75 lb (1250 g)
Wing Loading: 17 oz/sq ft (52 g/sq dm)
Center of Gravity: 2-1/4 - 3-1/4" (57 - 83mm) from the leading edge
of the wing measured at the fuselage
Control Throws: Low High
Elevator: 1/4" (6mm) 6° 3/8" (10mm) 9°
Aileron: 1/2" (13mm) 17° 5/8" (16mm) 21°
Rudder: 5/8" (16mm) 16° 7/8" (22mm) 22°
Flaps: 1/2 Rate, 1/2" (13mm) 17° Full Rate, 1" (25mm) 34°

Comments

If wanting to install flaps to slow the model and shorten the
landing approach the following items are required;
Rapide Flap Linkage Kit, FLZA6673
Two Micro Servos, TACM0205
Two 12" (300mm) Servo Extensions, TACM2093
Y-Harness/Dual Servo Extension, FUTM4130
Glue for Servos, DTXC2460
Medium CA, GPMR6007
Clear Tape
