Futaba - R2006GS 2.4G 6CH RX SFHSS 6J

TECH NOTES

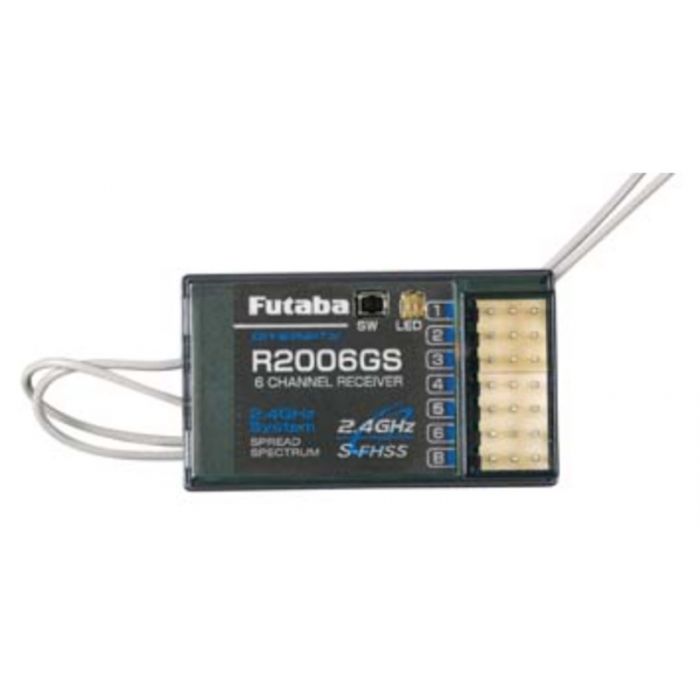

             This is the R2006GS 2.4GHz SFHSS 6-Channel Receiver

FEATURES: High-voltage (4.8 - 7.4V) capability eliminates the need for a
            regulator when using a 2S 7.4V LiPo pack as a power source
          Normal and High-Speed Modes:
           Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts any
             type of servos or peripherals.
           High-Speed mode (in 4PL tx only), with an output of 6.8ms accepts
            digital servos including the BLS series and most peripheral
            equipment such as brushless ESCs
          Capable of 4 channels only in FHSS mode
          Easy-Link circuitry, frequency hopping, spread spectrum design
          Dual Antenna Diversity

INCLUDES: Futaba R2006GS 2.4GHz SFHSS 6-Channel Receiver

REQUIRES: Binding to transmitter, installing in aircraft and connecting servos

SPECS:    Modes: FHSS or S-FHSS
          Voltage Input: 4.8V-7.4V
          Compatible Batteries: NiCd, NiMH, LiPo, LiIon & LiFe
          Dimensions: 1.70 x 0.98 x 0.35" (43.1 x 25 x 8.8mm)
          Weight: 0.29 oz (8.3 g)
          Current Drain: 80mA (@ no signal)
