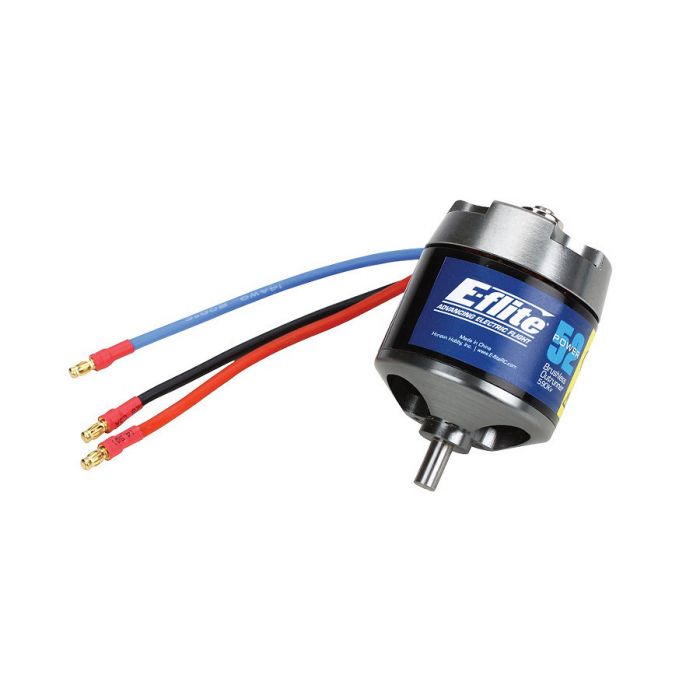

E-flite - Power 52 Brushless Outrunner Motor, 590Kv - EFLM4052A
CAD $221.99
Availability:
In stock
Only 1 left
SKU:
2809
Distributor Number
EFLM4052A
Manufacturer Number
EFLM4052A
Key Features
- Equivalent to a 46- to 55-size glow engine for 5.00- to 7.50 lb (2.20 – 3.40 kg) airplanes.
- Ideal for 40- to 50- size 3D airplanes up to 6.00 lbs (2.70 kg)
- Ideal for models requiring up to 1650 watts of power
- Capable of up to 65-Amp continuous current using 4S-6S Li-Po packs
- Includes mount, prop adapters and mounting hardware
- Quiet, lightweight operation
- External rotor design 6mm shaft can easily be reversed for alternative motor installations
- High-quality construction with ball bearings and hardened steel shaft
- Slotted 14-pole outrunner design
- Recommended for the Hangar 9 Katana 50 (HAN4170)
Overview
Designed to deliver clean and quiet power, the Power 52 Brushless Outrunner Motor, 590Kv is designed for 40- to 50-size sport and scale airplanes, 40- to 50-size 3D airplanes, as well as models requiring up to 1650 watts of power. The Power 52 is an especially good match for the Hangar 9 Katana 50 (HAN4170).
Product Specifications
| Type: | Brushless Outrunner |
| Size: | Equivalent to or surpassing the power of a 50- to 55-size 2-stroke glow engine |
| Recommended Prop Range: | 4S: 14 x 7 - 15 x 8; 5S: 13 x 8 - 15 x 7; 6S: 11 x 10 - 12 x 8 |
| Voltage: | 14.8V-22.2V |
| RPM/Volt (Kv): | 590 |
| Resistance (Ri): | 0.016Ω |
| Idle Current (Io): | 2.3A @ 18.5V |
| Continuous Current: | 65A |
| Maximum Burst Current: | 75A |
| Cells: | 14-20 Ni-MH/Ni-Cd or 4-6S Li-Po |
| Speed Control: | 80-Amp |
| Weight: | 12.2 oz (346 g) |
| Overall Diameter: | 2.00 in (50mm) |
| Shaft Diameter: | 6mm |
| Shaft Length: | 3.1 in (80mm) |
Needed to Complete80-Amp brushless ESC |
