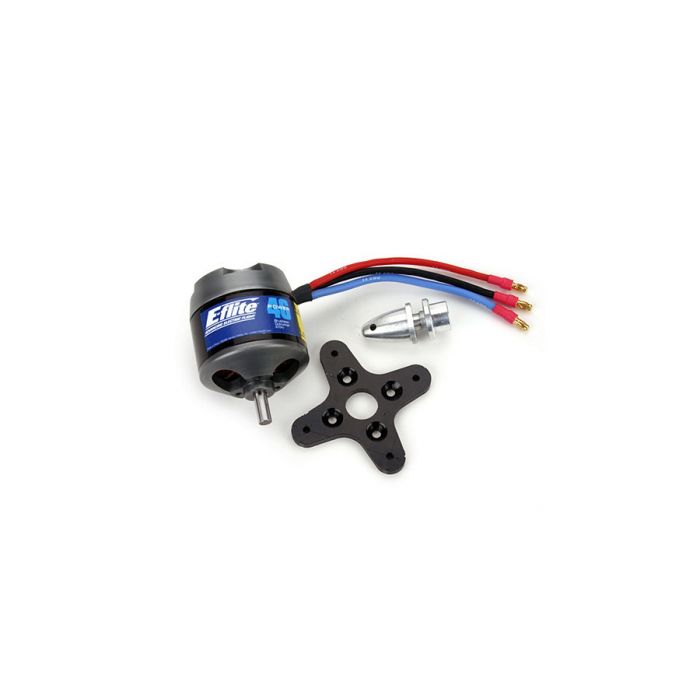

E-flite - Power 46 Brushless Outrunner Motor, 670Kv - EFLM4046A
CAD $181.29
Availability:
Out of stock
SKU:
2808
Distributor Number
EFLM4046A
Manufacturer Number
EFLM4046A
Key Features
- Equivalent to 40- to 46-size glow engine for planes weighing 4–7 lb (1.8–3.2 kg)
- Ideal for 25- to 40-size 3D airplanes up to 5 lb (2.2 kg)
- Ideal for models requiring up to 925 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors
- Includes mount, prop adapters and mounting hardware
- External rotor design—6mm shaft can easily be reversed for alternative motor installations
- Slotted 14-pole outrunner design
- High-quality construction with ball bearings and hardened steel shaft
- Quiet, lightweight operation
Overview
The Power 46 is designed to deliver clean and quiet power for .40 to 46-size sport and scale airplanes weighing 4 to 7 pounds (1.8–3.2 kg), 25- to 40-size 3D airplanes up to 5 pounds (2.2 kg), or models requiring up to 925 watts of power. It’s an especially good match for Hangar 9 .40-size trainers like the Alpha .40 (HAN2450), Arrow .40 (HAN2625) and warbirds like the T-34 Mentor 40 (HAN2425). Also a great match for sport planes like the Ultra Stick 40 (HAN1675 or HAN1690), Seagull Spacewalker 40 (SEA2050), and smaller sport 3D planes like the Twist 40 (HAN2650).
Product Specifications
| Type: | Brushless outrunner |
| Size: | Replacement for 40- to 46-size glow engines |
| Bearings or Bushings: | One 6 x 15 x 5mm Bearing, and Two 6 x 12 x 4mm Bearing |
| Wire Gauge: | 14 |
| Recommended Prop Range: | 12x8 to 14x10 |
| Voltage: | 14.4 to 19.2 |
| RPM/Volt (Kv): | 670 |
| Resistance (Ri): | .04 ohms |
| Idle Current (Io): | 3.90A @ 10V |
| Shaft Diameter: | 6mm (.24 in) |
| Overall Length: | 55mm (2.15 in) |
| Weight: | 290 g (10.0 oz) |
| Overall Diameter: | 50mm (2.00 in) |
| Diameter: | 50mm (2 in) |
| Length: | 55mm (2.15 in) |
| Continuous Current: | 40A |
| Maximum Burst Current: | 55A (15 sec) |
| Cells: | 12–16 Ni-MH/Ni-Cd or 4–5S Li-Po |
| Speed Control: | 60A brushless |
Detailed Information
 |
| Hardware is included with the purchase of this motor. |
|
Needed to Complete60A brushless ESC |
