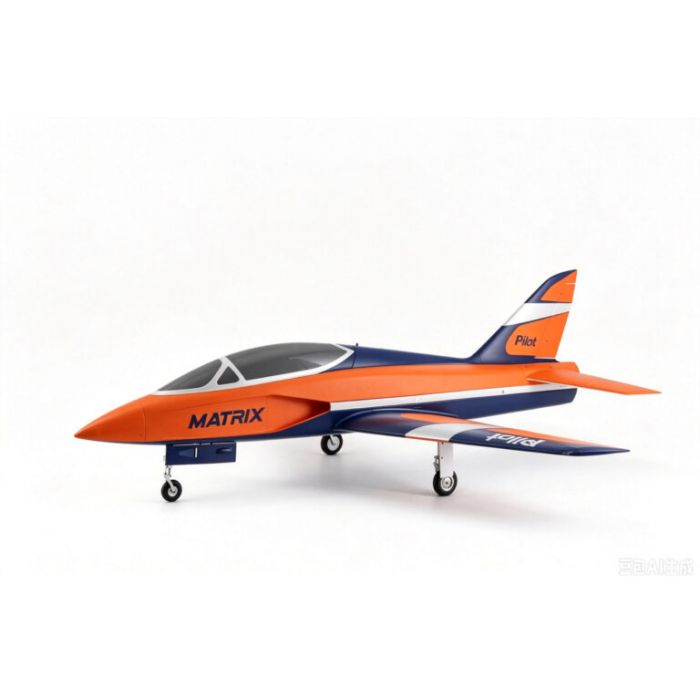

Pilot RC - Matrix PNP 8S - Orange - Foam Sport Jet 1.4m (57'')
CAD $1,150.99
Availability:
In stock
SKU:
23749
Distributor Number
MAT-14-02-8S-PNP
Manufacturer Number
P90P200OR
Pilot-RC Matrix 90mm EDF 1.4m (57")
DESCRIPTION
The Pilot-RC Matrix 90mm Foam EDF brings the performance, precision and unmistakable flying characteristics of the Matrix platform to a practical and versatile foam sport jet.
Designed to inspire confidence throughout the entire flight envelope, the Matrix combines excellent tracking, predictable low-speed handling and outstanding agility. It is equally at home performing smooth sport flying, high-speed passes, precision aerobatics, high-alpha manoeuvres or advanced 3D flying.
The standard 8S PNP configuration features a specially developed Pilot-RC / Dualsky 90mm EDF power system, a 130A telemetry ESC, eight pre-installed servos, electric retracts and Pilot-RC's convenient Quick-Release Wing System.
For pilots looking for even more performance, the Matrix platform also supports optional 8S power, thrust vectoring, 3D configurations and turbine conversion, making it an exceptionally versatile sport jet.
Included hardware :
- Servo pre-install for all configuration
- Retract pre-install for all configuration
- EDF 90mm and ESC pre-install for PNP both 8s and 6s version
- Brake wire signal for wheel brake are pre-install for all configuration
- Pre-install linkage for all surface
- additional linkage for convertible Flap system for easily configured as full-span aileron
- wingbag
Specifications of PNP 8s standard configuration
INCLUDED
Included with the 8S PNP Version
| Airframe | Pilot-RC Matrix 1.4m Foam Airframe |
| EDF | 90mm EDF, factory installed |
| Motor | Brushless motor, factory installed |
| ESC | Pilot-RC / Dualsky ESC with telemetry, factory installed |
| Servos | 8 × 13g micro servos, factory installed |
| Retracts | Electric retractable landing gear, factory installed |
| Control Linkages | Factory installed |
| Convertible Flap Linkages | Additional linkages for full-span aileron configuration |
| Wheel Brake Wiring | Signal wiring pre-installed |
| Wing Bag | Included |
| Hardware | Required assembly hardware |
FEATURES:
- EDF power system was specially developed in collaboration with Dualsky. The aircraft is equipped with a Dualsky ESC featuring ESC Forward Programming,
- The built-in telemetry system supports S.BUS2, EX Bus, SRXL2, CRSF, and S.Port protocols, providing real-time flight information directly on compatible radio systems, including:
- Battery Voltage
- Battery Current
- Battery Power
- Battery Capacity Consumed
- BEC Voltage
- BEC Current
- BEC Capacity Consumed
- Motor RPM
- ESC temperature
- The integrated Quick-Release (QR) Wing System allows the wings to be installed or removed in just minutes, making transportation and field assembly fast and hassle-free.
- The Matrix Foam EDF comes with wing bag. Whether you’re heading to your local flying field or traveling to an event, the Matrix Foam EDF is designed to spend less time on the ground and more time in the air.
- Convertible Flap System to full-span aileron
Airframe Configuration
For pilots looking to unlock even greater performance, more optional upgrade packages are available.
Which configuration is match to you?
A range of options to make your experience even more exceptional
More Information
Distributeur numero
MAT-14-02-8S-PNP
Numéro Manufacturier
P90P200OR
Country
China
Brand
Pilot RC
Completion Level
PNP - Plug and Play
UPC
MAT-14-02-8S-PNP
