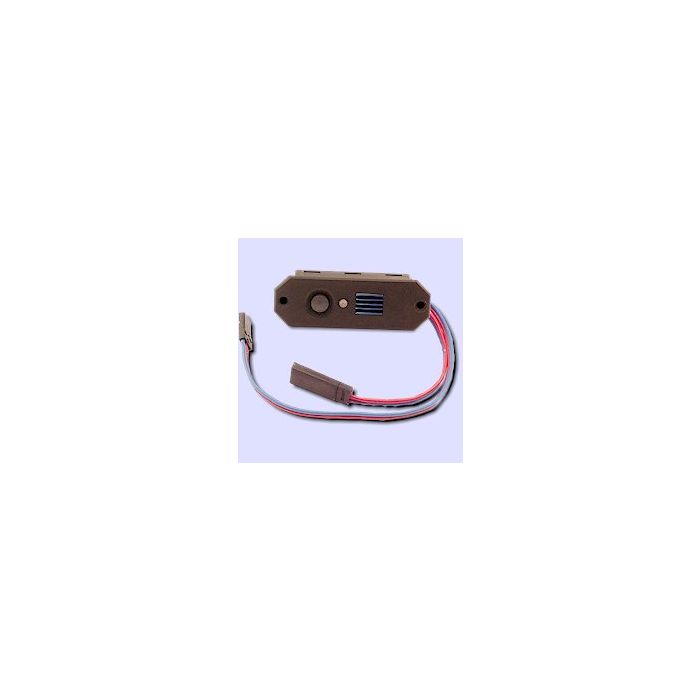

PowerBox Systems GmbH - PB6510 PowerBox Smart Switch - PBS6510
Special Price
CAD $50.44
Regular Price
CAD $57.99
Availability:
In stock
Only 1 left
SKU:
22466
Distributor Number
PBS6510
Manufacturer Number
6510
Specifications
Max. Constant Current: 3 to 5 Amps (Depending on Cooling)
Input Voltage: up to 8.40 Volts. (2 cell LiPo or LiIon)
Output Voltage: According to battery type in use
Temperature Range: 14° F to 131° F
Working Voltage: 6.0 V to 11.1 V
Current Drain: 60 mA
Voltage Loss: 0.2 V
Features
Electronic Digital Switch
Switch design is low-profile to avoid accidental operation (no more accidental shut-off / turn-on)
Multi-color LED indicates voltage level
Low voltage alert - status LED's report low voltage condition
Ideal soution for smaller models like jets, smaller airplanes, gliders, helicopters, boats and cars
Perfect for gas motor electronic ignition systems that can't use direct input of LiPo or LiIon voltages like older 3W ignitions, BME, Brison, C&H, and Desert Aircraft ignitions.
Applications
Small to medium sized aircraft with up to 6 servos **
Model gliders with up to 10 servos **
Helicopters .60 - .90 size
Electric helicopters
RC Cars
RC Boats
F3A models
Ignition systems designed for 4-cell NiCD / NiMh battery operation
[ ** Depending on servo size ]
Using The Switch:
Press and hold the button for about a half of a second until the LED glows orange.
Now release and quickly press the button again.
The LED will turn Green. The switch is now on.
To turn off the switch, press and hold the button for about a half of a second until the LED glows orange. Briefly release and quickly press the button again. The LED will turn off. The switch is now off.
When the battery is initally connected to the switch, the switch will initially turn itself on. The LED will glow green. This indicates proper operation.
Low Voltage Indication:
Green = AOK
Yellow = Warning
Red = Land
Flashing Red = Critical Low Battery!
More Information
Distributeur numero
PBS6510
Numéro Manufacturier
6510
Country
USA
Brand
PowerBox Systems GmbH
UPC
4250416701404
