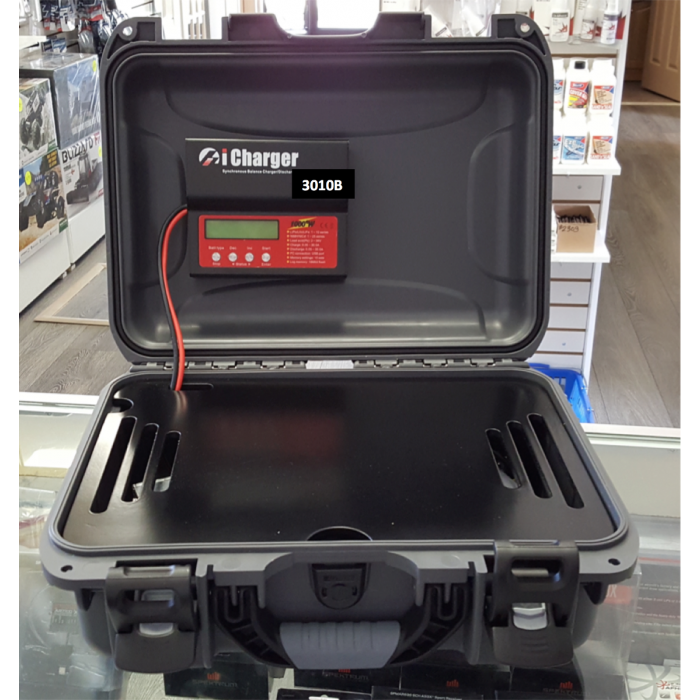

Mid Case 915-3010 - 1000Watts
This is the perfect match medium combo charging case AMR introduce to customer.
Ready to charge the batteries 1S to 6S.
- Icharger 3010B
Compact, versatile and powerful, the iCharger line of battery chargers are among the most popular in the RC hobby.

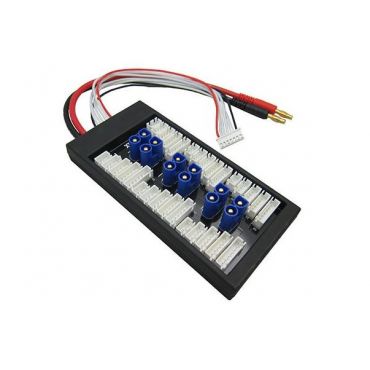

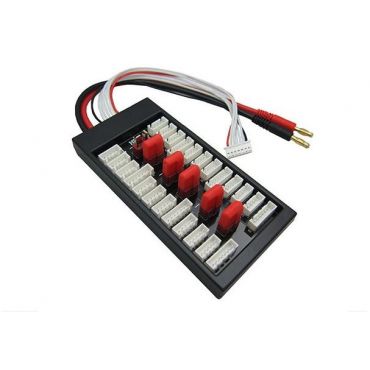

The 3010B charger is designed for charging 1S-10S packs at up to a 30 amp charge rate, while also giving you useful tools such as measuring the internal resistance of your batteries, or safely and easily discharging packs for storage. With a JST-XH & ThunderPower balance board thrown in for free, you're ready for just about anything.
|Maximum Charge Power||1000W (at >23V; 500W at 12V)|
|Charge Current Range||0.05-30.0A|
|Discharge Current Range||0.05-30.0A|
|Input Voltage||4.5-38V DC|
|Maximum Regenerative Discharge||1000W|
|Maximum External Discharge||1200W at 40V/30A|
|Current Drain For Balancing||<500mA|
|LiPo/LiIo/LiFe||1-10 series (up to 12S LiFe in non-balanced mode)|
|NiCd/NiMh Cell Count||1-25 series|
|Pb Battery Cell Count||1-18 series (2-36V)|
|Battery Setup Memories||10|
|Intelligent Temperature Control||Yes|
|PC Connectivity||USB port|
- Mean Wells SE-1000-24
One of the most respected names in the business, Mean Well have been making power supplies for almost 30 years.
The SE-1000-24 is a powerful 1000 watt power supply that makes a great companion for a high-power charger. Combine it with an iCharger 306B, 3010B or 308 Duo and charge 6S packs at a full 30A.
|Output Power (110 VAC)||1000W|
|Output Power (220 VAC)||1000W|
|Output Voltage||24V DC (adjustable +/-10%)|
|Input Voltage||90-132V/180-264V AC (selected by jumper)|
|AC Power Cord||Not included|
- AC CABLE:
For power supplies without integrated power cables, such as the Mean Well line, this heavy-duty cord gets you hooked up to AC power easily and safely with spade ends that connect to the screw terminals on your power supply.
- Input Connector: 3 Spade Connectors (inner width: 6mm; outer width: 8mm); Black is Line, White is Neutral, Green is Ground
- Output Connector: 3 Pin 110V AC Standard US Plug (NEMA 5-15)
- Length: 36"
