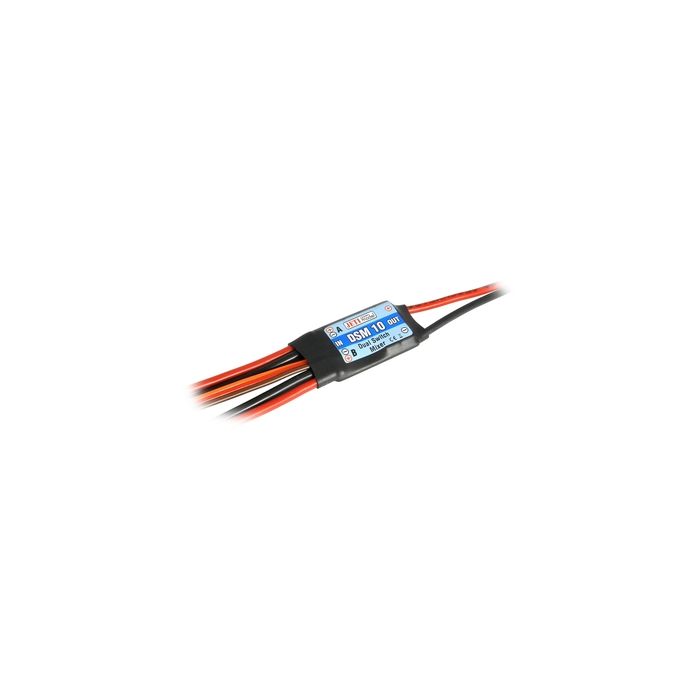

AMR - JETI Electronic Switch Dual Redundant with Magnetic Key DSM 10
CAD $131.59
Availability:
In stock
Only 1 left
SKU:
18146
Distributor Number
J-DSM-10
Manufacturer Number
J-DSM-10
Description
DSM 10 is an electronic switch for switching of two receiver batteries which are connected to one receiver. The product also includes a receiver current supply switch. Batteries that are connected to the inputs of the DSM 10 are permanently measured and connected with the aid of a hysteresis comparator either both to the output, or one of both batteries with the higher voltage only.
The DSM 10 exit consists of a MPX connector which can be used for direct connection of the exit to the receiver. The MPX connector is a fixed part of Duplex receivers with the label EPC (External Power Connector).
Parameters
| Weight [g] | 24 |
|---|---|
| Dimensions [mm] | 38 x 20 x 7 |
| Sustained current [A] | 10 |
| Peak current (max 30s) [A] | 20 |
| Telemetry | No |
| Operational temperature [°C] | -20 to 85 |
| Recommended input voltage [V] | 5 to 8.4 |
| Idle current [µA] | 130 |
| Number of battery inputs | 2 |
| Input voltage max. [V] | 13 |
More Information
Distributeur numero
J-DSM-10
Numéro Manufacturier
J-DSM-10
Brand
AMR
