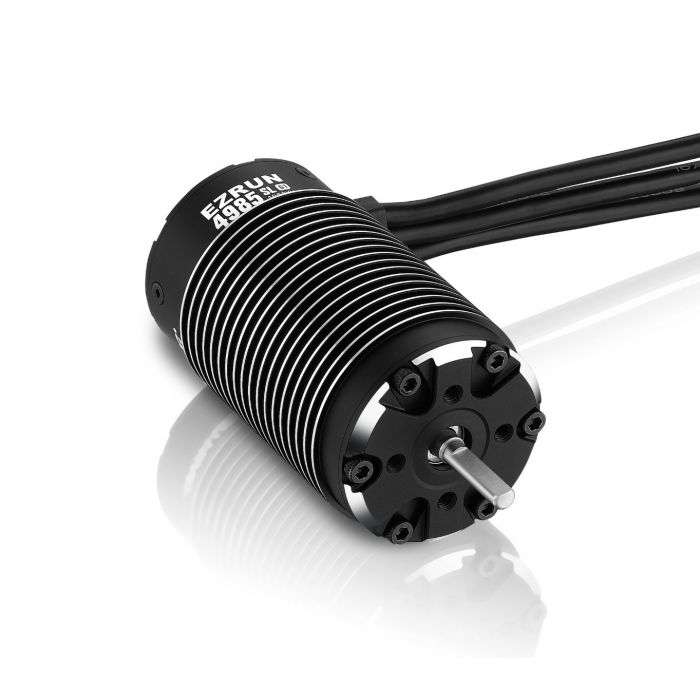

Hobbywing - EZRUN Max Motors 4985SL-1650KV
CAD $188.59
Availability:
In stock
Only 1 left
SKU:
18240
Distributor Number
30402950
Manufacturer Number
30402950
MAX SPEED & UBER POWER
"EZRUN Series SensorLESS Brushless Motor
for 1/5"
|
Model |
4985SL-1650KV | 5687SL-1100KV | 56113-800KV |
| PN | 30402950 |
|
|
| Pole | 4 | 4 | 4 |
| KV(No-load) | 1650KV | 1100KV | 800KV |
| R. (Ω) | 0.0053 | 0.0041 | 0.00049 |
| Current No-load（A） | 5.4 | 4.1 | 3.2 |
| Max. Output Power（W） | 5700 | 5800 | 5800 |
| C.at the point of M.O.P *(A) | 160 | 200 | 200 |
| Motor D.&L（mm） | Φ=49mm, L=86.5mm | Φ=56mm, L=87mm |
|
| Shaft D.&L of the projecting part（mm） | Φ=5.0mm, L=21.5mm | Φ=8.0mm, L=31.0mm. |
|
| LiPo(S) | 3-6 | 3-8 | 3-8 |
| W (g) | 587g (20.71oz) | 916g(32.21oz) | 1210g(42.68oz) |
| Applicable | 1/6th & 1/7th RC Vehicles |
|
|
1. How to Mount the Motor into RC vehicle
M4 mounting screws are needed there (four for the 4985 motor, eight four the 5687/56113 motor), as the mounting holes are 8mm in depth, So we don't recommend using the M4 screws with the length that exceeds 10mm to mount the motor into your vehicle
2. How to Connect the Motor to an ESC
There is no polarity on the A/B/C three ESC-to-motor wires, so do not worry about how you connect them initially. You may find it necessary to swap two wires if the motor runs in reverse.
3. Recheck the Installation & Connections
Recheck the installation and all the connections before turning on the power.
