Hangar 9 - Carbon Cub 15cc ARF - HAN5065
CAD $729.99
Availability:
Out of stock
SKU:
9503
Distributor Number
HAN5065
Manufacturer Number
5065
KEY FEATURES
- Laser-cut, all-wood construction that’s lightweight
- Shock-absorbing main landing gear and tundra-style wheels

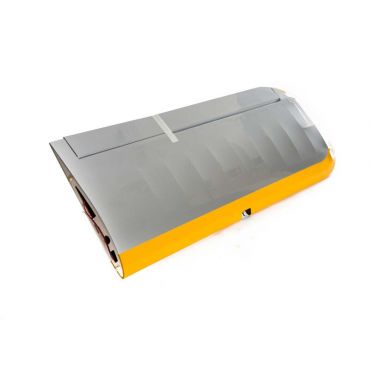

- Two-piece, plug-in wing with functional flaps
- Quick-connect, streamlined wing struts
- Functional LED landing lights, installed
- Operational cockpit side-doors
- Instrument details and seats included
- Float ready, with hard points for optional 1/5-scale float set
- Matching paint on fiberglass cowl and accessories
- Pre-cut hinge locations for all control surfaces
- Genuine UltraCote® film finish
- Tail wire detail and a leaf tail wheel
- Easy installation of engine or electric power recommendations
- Complete hardware package featuring fiberglass control horns
PRODUCT SPECIFICATIONS
- Wingspan:
- 90 in (228 cm)
- Overall Length:
- 60 in (153 cm)
- Wing Area:
- 1170 sq in (75.5 sq dm)
- Flying Weight:
- 11.4 lb (5.2 kg)
- Engine Size:
- 15cc 2-stroke gas/petrol
- Motor Size:
- Power 60
- Radio:
- 6+ Channel, full-range transmitter and receiver
- Servos:
- 7 Standard digital servos (6 for electric)
- Trim Scheme Colors:
- Cub Yellow U884, Black U874, Silver U881
- CG (center of gravity):
- 4.0-4.7 in (100-120mm)
- Wing Loading:
- 22.4 oz/ sq in
- Prop Size:
- 15x6-15x7 (15cc gas), 16x10E (EP)
- Spinner Size:
- 2-3/4 inch (70.0 mm)
- Speed Control :
- HV 80 AMP
- Recommended Battery:
- 5000mAh 6S 22.2V Li-Po
- Flaps:
- Yes
- Control Throw (Ailerons):
- Low: Up 13mm and down 11mm, 20% Expo/ High: Up 22mm and down 18mm, 30% Expo
- Control Throw (Elevator):
- Low: Up 20mm and down 15mm, 20% Expo/ High: Up 30mm and down 25mm, 30% Expo
- Control Throw (Rudder):
- Low: left 33mm and right 33mm, 20% Expo/ High: Left 55mm and right 55mm, 30% Expo
- Control Throw (Flaps):
- Mid: 7/8 in (22mm)/ Landing: Adjust Maximun throw without binding
- Approx. Flying Duration:
- 12 to 15 minutes
- Scale:
- 1:5 (20%)
- Experience Level:
- Intermediate
- Recommended Environment:
- Outdoor
- Assembly Time:
- 20+Hours
- Is Assembly Required:
- Yes
More Information
Distributeur numero
HAN5065
Numéro Manufacturier
5065
Country
China
Brand
Hangar 9
Completion Level
ARF - Almost Ready to Fly
UPC
605482601907
