O.S. Engine - OMH-4535-560kV Brushless Outrunner: 600-650 Heli - OSMG9450
CAD $289.99
Availability:
In stock
Only 1 left
SKU:
6655
Distributor Number
OSMG9450
Manufacturer Number
51020124

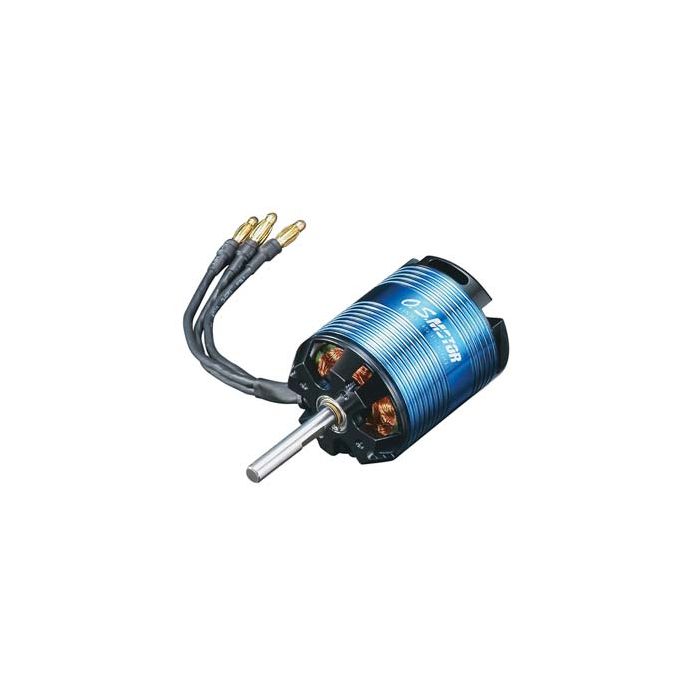

- This is the O.S.Motor 560 Size 560kV 10 Turn Brushless Helicopter Motor.
FEATURES:
- Ideal for 600-650 size helis
- Handles up to 12 cell batteries
- 16AWG 3.9" (100mm) lead wires with 4mm male connectors
- Two year limited warranty through Hobby Services beginning at date of purchase
INCLUDES:
- 560 Size 560kV 10 Turn Brushless Helicopter Motor with three each
- 4mm Male and Female Connectors, three sections of shrink wrap, and Instructions
REQUIRES:
- Pinion Gear and ESC of modeler's choice
SPECS:
- kV Rating: 560
- Shaft Diameter: 0.24in (6mm)
- Shaft Length: 1.38in (35mm)
- Body Length: 2.28in (58mm)
- Weight: 13.1oz (372g)
- Rated Current: 75A
- Maximum Current (5 seconds): 125A
- No Load Current: 1.9A/10V
- Phase Resistance: 23.8 miliohms
- Phase Inductance: 27.2uH
- Maximum Efficiency: More than 90%
- Rated Voltage: 44.4V
- Poles: 10
- Turns: 10
- Shaft Length: 1.4" (35.5mm)
- Motor Can Length: 2.3" (58mm)
- Motor Can Diameter: 1.8" (45mm)
- Length from Motor Can to end of Shaft: 3.7" (93.5mm)
- Distance between Mounting Hole Centers: 0.98" (25mm) measured diagonally
- Distance between Mounting Hole Centers: 0.70" (17.7mm) measured side-to-side
More Information
Distributeur numero
OSMG9450
Numéro Manufacturier
51020124
Country
USA
Brand
O.S. Engine
UPC
4531028500327
