AC/DC TRITON2 EQ CHGR BALANCER

SKU
10180
Product Number:
GPMM3156
CAD $256.59
Quantity in stock: 1

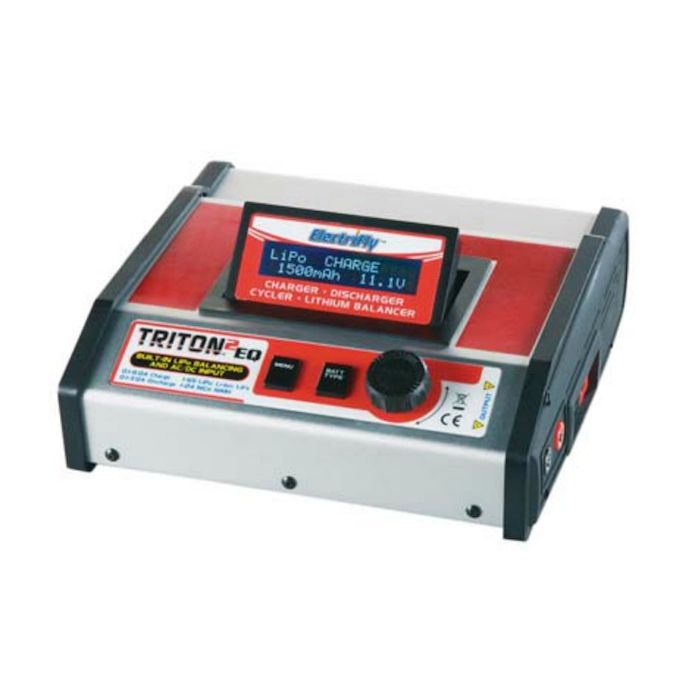

This is the ElectriFly AC/DC Triton2 EQ
            Computerized Charger, Discharger, Cycler and Balancer.

**Primary differences between the TritonEQ and the Triton2 EQ are as follows;**
     TritonEQ                                     Triton2 EQ
  Handles 1-14 NiCd & NiMH cells               1-24 NiCd & NiMH cells
          1-6 LiPo/LiIon                       1-6 LiPo/LiIon
          1-6 (2-12V)Pb                        3-12 (6-24V)Pb
  Fast Charge Current: 0.1-5.0A                0.1-8.0A Linear
  63W max DC, 50W max AC                       120W max DC, 100W max AC
  Battery Memories: 1                          Battery Memories: 10
  Cycle Count (NiCd, NiMH only): 1-5 cycles    1-10 cycles
  No thermal probe port                        Thermal probe port


      ***Upgraded features over the ElectriFly Triton Jr. include;***
  Lightweight built-in switching AC power supply, plus DC input capabilities
   New reversed character LCD with backlight and 0-45° adjustable view angle
         Built-in balancing for 1-6S LiPo, Li-Ion or LiFe (A123) cells
                  with FlightPower and ElectriFly adapters
                          Up to 8.0A charge current

FEATURES: Charges 1-24 cell NiCd, NiMH (1.2-28.0V), 1-6 cell LiPo, Li-Ion,
            LiFe (3.3, 3.6 or 3.7V cells)
          Adjustable charge current from 0.1-8 amps makes this charger ideal
            for many applications including tiny to large electric planes and
            helis, TX and RX batteries, field batteries and more
          0.1-3.0A adjustable discharge current
          Built-in balancing for up to 6S LiPo, Li-Ion or LiFe (A123) cells
            with FlightPower and ElectriFly adapters (GPMM3200 and GPMM3201)
          Precision peak detection with adjustable sensitivity for NiCd and
            NiMH batteries
          Constant current/constant voltage charge method for Pb and
            lithiums
          Performs 1 to 10 cycles on NiCd and NiMH batteries, and recalls all
            data
          Configures up to 10 batteries in memory for instant, easy recall
            and charger setup
          Adjustable discharge cutoff voltages for NiCd/MH, pre-set voltages
            for Pb and lithiums
          Temperature sensing capabilities (GPMM3151 Thermal Probe available
            separately)
          Top-off charge feature fully charges NiMHs without overheating
          Reversed LCD with backlight plus a 0-45° adjustable view angle
            clearly displays input and output volts, peak volts, average
            discharge volts, charge and discharge capacity, currents and time
            data for 10 cycles, errors and individual lithium cell voltages
          Banana plugs on DC input with mating gator clips
          Safety features include cool-off time delay, maximum NiMH charge
            input, fast charge safety timer, current overload and reverse
            polarity protection
          Warning messages for improper input voltage, poor connections,
            unsuitable battery condition, reverse polarity on output
          Built-in cooling fan, for better charge efficiency and extended
            charger life
          One year limited warranty

INCLUDES: ElectriFly AC/DC Triton2 EQ with alligator clips, ElectriFly and
           FlightPower adapters, and instruction manual

REQUIRES: Charge leads depending on battery type
          Matching discharge leads depending on battery type
             HCAP0101  Futaba J Tx/Rx Charge Leads NO 9VAP
                       Futaba J Tx/Rx Charge Leads 9VAP ONLY
             HCAP0105  JR Tx/Rx Charge Leads
             HCAP0106  Hitec/Airtronics Z Tx/Rx Charge Leads
             GPMM3148  Charge Lead BANANA/DEANS MALE U
             GPMM3149  Charge Lead BANANA/DEANS MICRO
             DTXC2222  Charge Lead Banana Plugs To Traxxas Male

SPECS:    AC Input Voltage: 110V 60Hz - 240V 50Hz (detachable AC cord)
          DC Input: 11-15.0V, banana plugs with mating gator clips included
          Number of Outputs: One
          Battery Types, # cells: 1-24 NiCd, NiMH (1.2-28.0V)
                                1-6 LiPo, Li-Ion, LiFe (3.3, 3.6 or 3.7V cells)
                                6, 12, 24V Pb (2V per cell)
          Fast Charge Current: 0.1-8.0A linear NiCd, NiMH, auto mode
                               0.1-8.0A for lithiums (1C max) and Pb
                               120W max DC, 100W max AC
          Fast Charge Termination: Peak detection NiCd, NiMH,  cc/cv for Pb and
            lithiums, optional thermal cutoff for all battery types
          Trickle Current (NiCd/MH only): 0-300mA
          Peak Sensitivity (NiCd/MH only): NiCd 5-20mV, NiMH 3-15mV
          Peak Delay at Start (NiCd/MH only): 0-60 minutes
          Fast Charge Safety Timer: 0-990 minutes
          Max. Charge Cap: 0-9900mAh
          NiMH Top Off Charge: 0-1000mA
          Lithium Balancing Accuracy: 5mV per cell
          Lithium Balancing Connector: ElectriFly and FlightPower adapters
            included
          Lithium Max. Node Current: 300mA
          *Thermal Cutoff: 50-150°F (10-65°C)
          Discharge Current: 0.1-3.0A
          Discharge Cutoff Voltage: NiCd, NiMH 0.5-1.2V per cell
                                    LiPo and Li-Ion 3.0V per cell
                                    LiFe 2.5V per cell
                                    Pb fixed at 1.8V per cel
          Cycle Count (NiCd/MH only): 1-10 cycles
          Cycle Time Delay (NiCd/MH only):  1-60 minutes
          Battery Memories: 10 battery memories
          Programming Controls: Dial and 2 pushbuttons
          Display Type: 2x16 reversed LCD w/backlight & adjustable view angle
          Audible Indicators: 10 melodies, on/off
          Main Output Connection: Banana jacks
          Case Material: Aluminum and ABS plastic
          Cooling System: Built-in fan
          Current Overload: Solid state
          Case Size: 7.2 x 7.0 x 2.44 in. (184 x 178 x 62mm)
          Weight: 39.4 oz. (1116g, w/o AC power cord)
          * GPMM3151 - Triton Thermal Probe available separately
