Spektrum - A7100 MT/MS MG HV Wing SPEACIAL Servo 8.3KG
CAD $159.59
Availability:
In stock
Only 2 left
SKU:
20453
Distributor Number
SPMSA7100
Manufacturer Number
SPMSA7100
Features
-
Bearing supported drive train helps maximize smooth operation
-
Operating Frequency: 200hz to 333hz
-
Low wear and tightly meshed all metal gear train
-
Class leading performance (8.3kg-cm and .078 sec/60° @8.4v)
-
Specifically designed for thin wing aircraft models and sailplanes
-
Over Current and Temperature protection
-
Aluminum servo case helps keep operating temperatures low
-
High Voltage (HV) capable (4.8-8.4v input range)
Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Specifically designed for thin wing aircraft models and sailplanes
- Class leading performance (8.3kg-cm and .078 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz

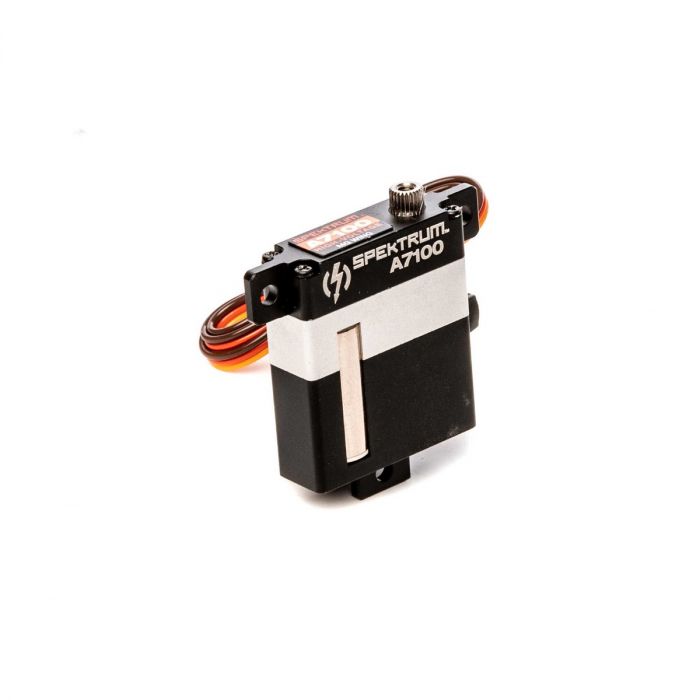

A7100 Mid Torque Mid Speed HV MG Thin Wing Servo
The Spektrum ™ A7100 digital metal gear servo offers phenomenal performance for sailplanes and other thin wing applications. High voltage capable, the A7100 can produce 8.3kg-cm (115 oz-in) of torque at fast 0.078 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting coreless motor and is ball bearing supported for smooth operation. It also features a full aluminum case plus low deadband and extraordinary precision. Like all Spektrum servos, the A7100 delivers reliability, consistency and performance that are second to none.
Specifications
- Application
- Sailplane
- Bearing
- Single BB
- Bushing Or Bearing
- Bearing
- Deadband
- <1µs
- Gear Type
- Metal
- Input Voltage
- 4.8V-8.4V
- Material
- Metal
- Max Servo Torque
- 100-199 oz-in
- Maximum Servo Speed
- 0.091 sec/60 deg @ 6.0V; 0.086 sec/60 deg @ 7.4V; 0.078 sec/60 deg @ 8.4V
- Maximum Servo Torque
- 96 oz-in (6.9kg-cm) @ 6.0V; 100 oz-in (7.2kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V
- Overload Protection
- No
- Product Application
- Sailplane
- Product Height
- 1.38" (35 mm)
- Product Length
- 1.18" (30 mm)
- Product Weight
- 1.0 oz (28g)
- Product Width
- 0.39" (10 mm)
- Programmable
- No
- Servo Size Category
- Thin Wing
- Servo Type
- Digital
- Spline Count
- 25 - Tooth
More Information
Distributeur numero
SPMSA7100
Numéro Manufacturier
SPMSA7100
Country
China
Brand
Spektrum
