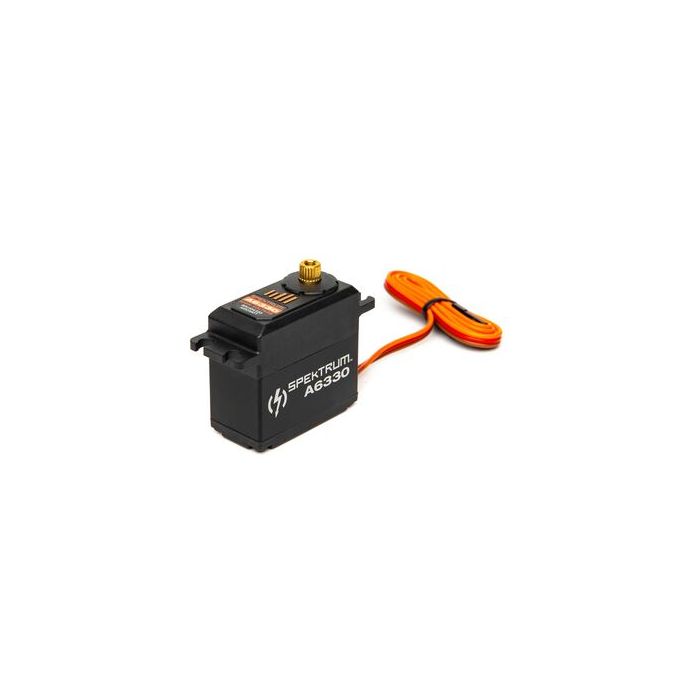

Spektrum - A6330 High Torque High Speed MG HV Brushless STD Servo 18KG - SPMSA6330
CAD $127.59
Availability:
In stock
Only 4 left
SKU:
18938
Distributor Number
SPMSA6330
Manufacturer Number
SA6330
Specifications
- Application
- Airplane
- Bearing
- Dual Ball Bearing
- Bushing Or Bearing
- Bearing
- Connector Type
- Universal
- Gear Type
- Metal
- Input Voltage
- 6 - 8.4V
- Maximum Servo Speed
- 0.13 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
- Maximum Servo Torque
- 126.6 oz-in (9.11 kg-cm) @ 6.0V; 178 oz-in (12.82 kg-cm) @ 7.4V; 248 oz-in (17.86 kg-cm) @ 8.4V
- Motor Type
- Brushless
- Overload Protection
- Yes
- Product Application
- Air
- Product Height
- 1.56" (40 mm)
- Product Length
- 1.58" (40 mm)
- Product Weight
- 2.25oz (71g)
- Product Width
- 0.79" (20 mm)
- Programmable
- No
- Rotation Range
- 120 degree
- Servo Operating Voltage
- 6.0 - 8.4V (HV)
- Servo Size Category
- Standard
- Servo Type
- Digital
- Spline Count
- 23 - Tooth
- Water-Resistant
- No
- Wire Gauge
- 22 AWG
More Information
Distributeur numero
SPMSA6330
Numéro Manufacturier
SA6330
Country
TAIWAN
Brand
Spektrum
