Futaba - 8JH 2.4GHZ S/FHSS W/R2008SB M2

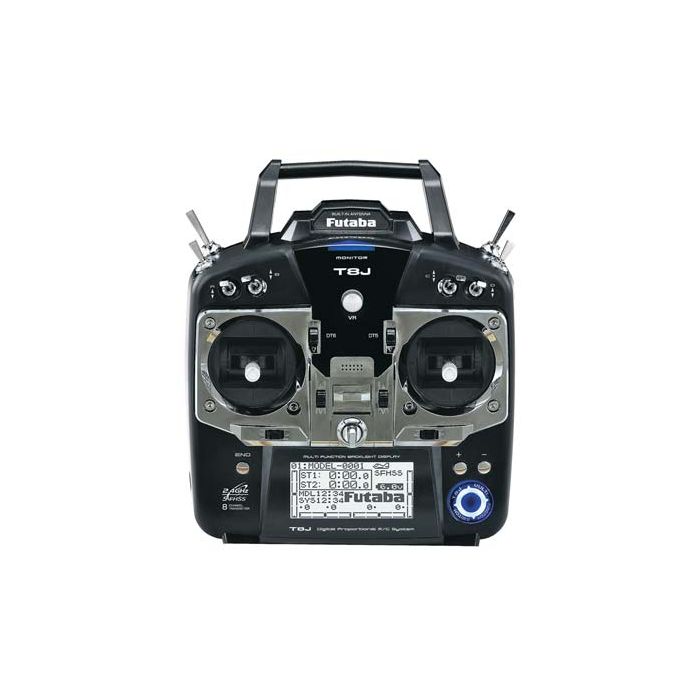

This is the Futaba 2.4GHz S/FHSS 8JH Radio System
                  with the R2008SB S.Bus capable Receiver.
                         Does not include servos.
               The 8J 2.4GHz transmitter is "full range".
                         Only available in Mode 2.

   This is the helicopter version which will default to helicopter settings
        when powered up and does not have a ratcheted throttle stick.

FEATURES: Futaba S-FHSS 2.4GHz security (also FHSS compatible)
          Transfers model data wirelessly to and from one 8J to another
          Capable of 4 channels only in FHSS mode
          R2008SB receiver offers 8 PWM channels, S.Bus and HV capability and
            Dual Antenna Diversity
          Airplane and helicopter modes
          20 model memory with 10 character model and user naming
          Large backlit LCD display (128 x 64 dot)
          8 channels (one varible knob, five 2-position switches,
            two 3-position switches, one momentary switch and two digital
            levers)
          Failsafe on all 8 channels
          Easy jog dial and three button programming
          ATL
          Aux channel switch/level assignability
          One year limited warranty through Hobby Services beginning at date
            of purchase
             Airplane Mode Features;
          6 Programmable Mixes                   Snap Roll
          Flaperons with Differential Rate       Elevator/Flap Mixing
          Flap Trim                              Airbrake/Landing
          Differential Ailerons                  Aileron/Rudder Mixing
          V-Tail Mixing                          Flap/Elevator Mixing
          Elevon                                 Gyro Sensitivity
          Ailevator                              Throttle Curve (five points)
          Throttle Needle Mixing (five points)   Throttle Delay
          Idle Down (any switch selectable)
            Helicopter Mode Features;
          8 Swash Plate Types
          5 Flight Conditions (normal, idle up 1, idle up 2, idle up 3, hold)
          Throttle Curve (five points, five curves)
          Throttle Hold
          Hover Pitch Mixing
          Hover Throttle Mixing
          Gyro Sensitivity/Mixing
          Governor Setting/Mixing
          Hi/Lo Pitch Mixing
          Offset Mixing
          Condition Delay
          Throttle mixing (swash>throtttle)
          Throttle/Needle Mixing (5 point curve)
          Swash AFR
          Swash Mixing
          Electronic Swash Ring
          Throttle Delay
          Revolution Mixing
          6 Programmable Mixes

INCLUDES: 8J Transmitter
          R2008SB 8-channel Receiver, FUTL7608
          Neckstrap
          On/Off Switch
          Instruction Manual

REQUIRES: Four AA batteries for transmitter
          Servos of modeler's choice

COMMENTS: To use the NiMH battery FUTM1482, you will need to purchase
          charger FUTM1832. You can also call Futaba Services at
          217-398-8970 opt 2 to order a charge lead to use with your
          own charger. HSP29615. (requires soldering on the
          correct charger plugs)
          You may also use a 2C 6.6V LiFe battery such as HCAM6521
