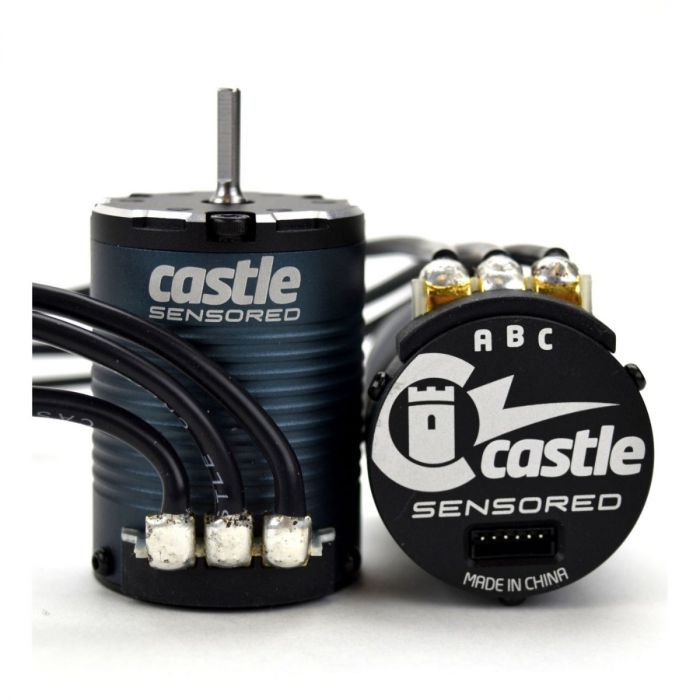

Castle Creations - 4-Pole Sensored BL Motor, 1406-2850Kv 060-00070-00
CAD $120.59
Availability:
Out of stock
SKU:
15711
Distributor Number
CSE060007000
Manufacturer Number
CSE060007000
Features
- Stacked stator with high quality 0.2mm steel laminations
- Kevlar wrapped rotor
- Running modes: SMARTSENSE™, Sensored, Sensorless
- High RPM NMB oversized bearings
- Slate Colored
- Low Kv Sensored Crawler/Rock Racer Brushless Motors
- High quality, temperature-stabilized sensors
- 6061-T6 aluminum heatsink can
- Hardened stainless steel shaft
- 13 AWG high strand count wire with silicone insulation
- High-purity, high-temperature copper windings
- High strength 180°C grade neodymium sintered magnets
- Low resistance gold plated bullet connectors
Overview
Ideal for 1/10 scale rock crawlers, trail rigs, touring cars, stadium trucks and buggies on 2S-4S with appropriate gearing.
Specifications
- Cells: 2S-4S LiPo
- Overall Diameter: 36mm
- Overall Length: 49.5mm
- RPM/Volt (Kv): 2850Kv
- Shaft Diameter: 1/8 in (3.17mm)
- Shaft Length: 15mm
- Type: Brushless
- Weight: 7.1 oz (203g)
More Information
Distributeur numero
CSE060007000
Numéro Manufacturier
CSE060007000
Country
China
Brand
Castle Creations
UPC
819326011627
