Hitec - HS-5245MG MT MN 2BB DIG

TECH NOTES

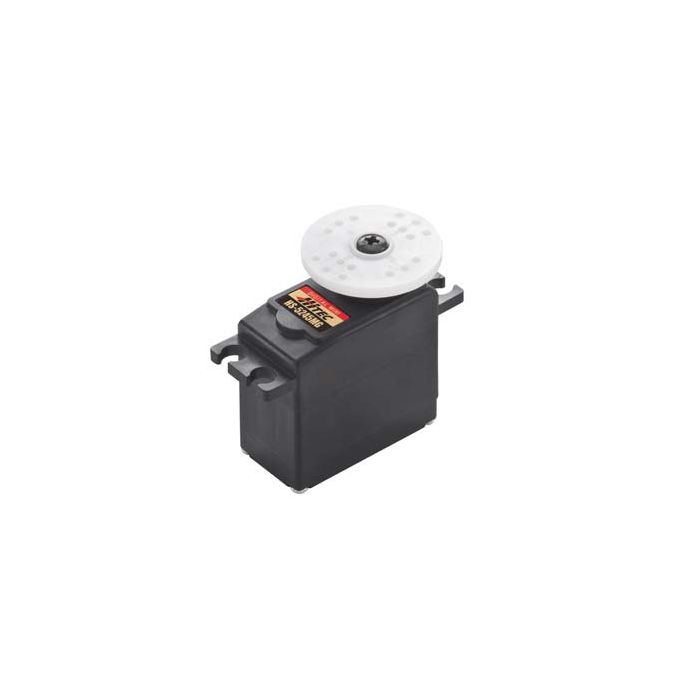

              This is the Hitec HS-5245 Metal Gear Ball Bearing
                  Digital Super Torque Mini Servo with the
          Universal Futaba J, Hitec S, JR and Airtronics Z Connector.
             Suitable for small medium and sport planes, gliders,
                     .30 size helicopters, and cars.

FEATURES: Dual ball bearings.
          Digital and MOSFET amp programmable (see COMMENTS).
          Indirect drive potentiometer for long life.
          Narrow dead band width and high standing torque.

INCLUDES: One Hitec HS-5245 Metal Gear Ball Bearing Digital Super Torque Mini
            Servo with the Universal with, four rubber grommets, four eyelets,
            one star shaped, one arm, and two arm straight nylon servo horns,
            one aluminum servo horn.

REQUIRES: Installing on model, attaching linkages, and connecting to receiver.

SPECS:    Wire color codes: Black-Ground, Red-Power, Yellow-Signal
          Operating speed: 0.15 sec @ 60° at 4.8V
          Torque: 61 oz-in (4.4 kg-cm)
          Weight: 1.12oz (32g)
          Length: 1.27" (32.4mm)
          Width:  0.66" (16.8mm)
          Height: 1.21" (30.8mm)
          Wire length: 12" (305mm) approximate
