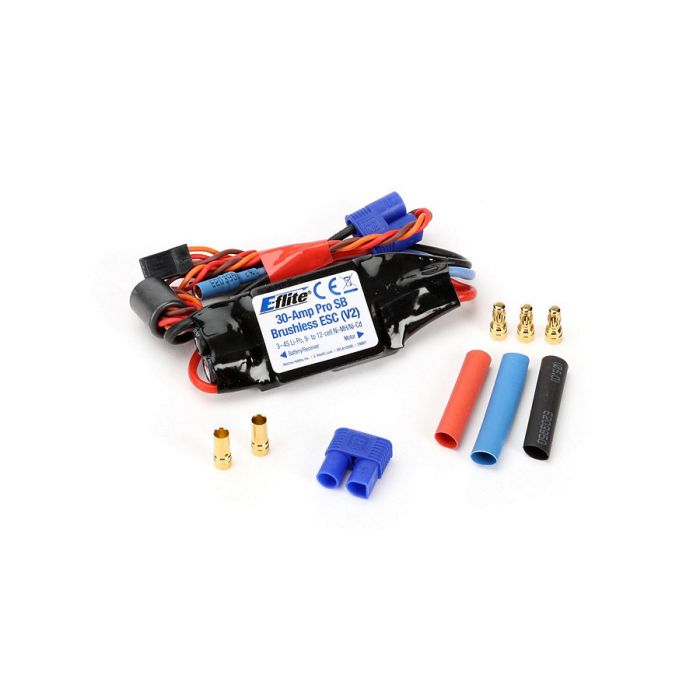

E-flite - 30-Amp Pro Switch-Mode BEC Brushless ESC (V2) - EFLA1030B
CAD $72.99
Availability:
Out of stock
SKU:
2813
Distributor Number
EFLA1030B
Manufacturer Number
EFLA1030B
Key Features
- Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
- 3.5A continuous current, 5V Switch-Mode BEC Circuit
- Stronger BEC for support of most 3-axis stabilization systems
- Drive up to 7 analog or 6 digital standard-size servos with the BEC
- 3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start for helis and airplanes
- Auto motor shut down if signal is lost or there is interference
- Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors
- Pre-wired connectors—E-flite EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads
Overview
The E-flite® 30-Amp Pro Switch-mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
Product Specifications
| Continuous Maximum Current: | 30A (proper cooling required) |
| Input Voltage: | 3–6S Li-Po or 9–18 Ni-MH/Ni-Cd |
| Input Connector Types: | 16 AWG leads with E-flite EC3 Connector |
| Output Connector Types: | 16 AWG leads with 3.5mm Gold Bullet Connectors |
| Momentary Peak Current: | 35A (15 sec) |
| Length: | 51.0mm (2.00 in) |
| Width: | 28.0mm (1.10 in) |
| Height: | 8.70mm (0.35 in) |
| Weight: | 31.0 g (1.10 oz) |
| Wire Gauge: | 16 AWG |
Articles, Reviews, How-Tos & More
More Information
Distributeur numero
EFLA1030B
Numéro Manufacturier
EFLA1030B
Country
China
Brand
E-flite
UPC
605482079164
