18SZA 2.4G R7008SB AIR TELMTRY

SKU
9564
Product Number:
FUTK9510
CAD $1,869.99

Release Date: 2 weeks for delivery - Disponible 2 semaines
Quantity in stock: 0

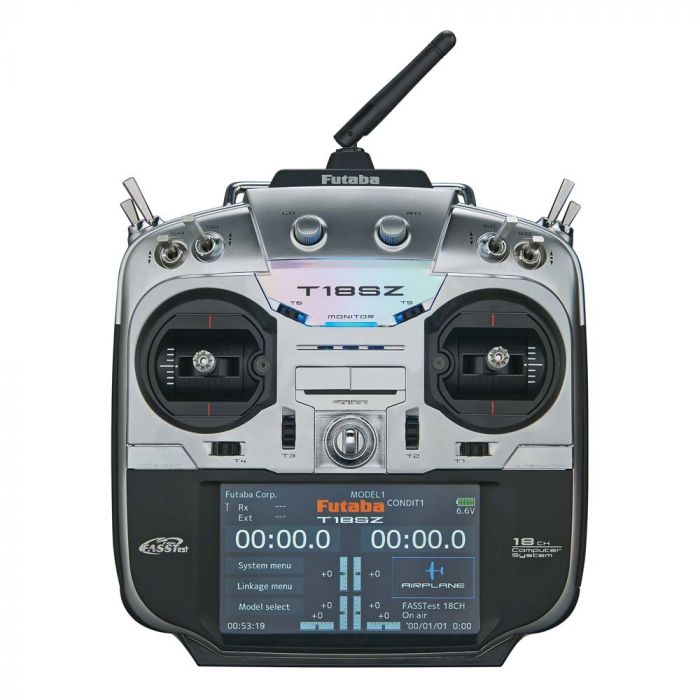

This is the Futaba 2.4GHz 18SZA 18-Channel Telemetry Airplane Radio System
                    with the R7008SB Telemetry Receiver.
                           Servos Not Included

    This is the airplane version which will default to airplane settings
             when powered up and has a ratcheted throttle stick.

FEATURES: Select between FASST, FASSTest, S-FHSS and T-FHSS (telemetry)
          Telemetry sensors provide in-flight data on temperature, RPM
            (magnetic & optic) altitude, voltage, GPS, current and data logging
            **sensors not included, must be purchased separately**
          4.3" full color LCD touch screen
          Eight full transmitter conditions to customize every flight
          Telemetry voice messages
          Thirty model memory, expandable with memory card (not included)
          Fifteen character model/user naming
          Programmable mixing (10 circuits per condition)
          User updateable software
          Two side levers, six digital trims, eight toggle switches
          Left and right sliders offer analog input
          Data editor for S.Bus programming
          Battery fail safe
          Earphone jack
          Thirteen airplane wing types, eight heli swash types, thirteen
            glider wing types
          Two up/down timers, system timer and model timer
          6.6V 2100mAh LiFe transmitter battery
          Servo monitor
          Dual receiver setup
          Logic switch
          One year limited warranty through Hobby Services beginning at date of
            purchase

            Airplane Features;
          13 Wing Types              2 Rudder Types
          3 Tail Types               Flap Setting
          Aileron Differential       Aileron to Camber Flap Mix
          Aileron to Brake Flap Mix  Aileron to Rudder Mix
          Aileron to Elevator Mix    Rudder to Aileron Mix
          Rudder to Elevator Mix     Camber Mix
          Elevator to Camber Mix     Camber Flap to Elevator Mix
          Snap Roll                  Airbrake Mix
          V-Tail                     Ailevator
          Winglet                    Motor Mix
          Multi-Engine               Gyro Sensor

            Helicopter Features;
          8 Swash Types              Pitch Throttle Curve
          Pitch Throttle Curve       Pitch Throttle Curve Mode (3)
          Acceleration               17 Point Pitch/Throttle Curve
          Throttle Hold              Swash Mixing
          Throttle Mixing            Pitch to Needle Mixing
          Pitch to Rudder Mixing     Gyro Sensor (3)
          Governor                   Condition Hold
          Hovering Pitch             Hovering Throttle
          Swash AFR                  Swash Setting
          Swash Ring                 Throttle Limiter

            Glider Features;
          13 wing types              Aileron Differential
          3 Tail Types               Aileron to Camber Flap Mix
          2 Rudder Types             Aileron to Brake Flap Mix
          Flap Setting               Camber Mix
          Aileron to Rudder Mix      Elevator to Camber Mix
          Rudder to Aileron Mix      Camber Flap to Elevator Mix
          Airbrake to Elevator Mix   Butterfly Mixing
          Trim Mix 1                 Butterfly to Elevator
          Trim Mix 2                 V-Tail
          Ailevator                  Winglet
          Motor Mix

            Multicopter Feature;
          Gyro

INCLUDES: 18SZA 18-Channel Aircraft Transmitter
          R7008SB Telemetry Receiver, FUTL7675
          FT2F2100BV2 6.6V 2100mAh LiFe Transmitter Battery
          Battery Charger
          Switch Harness
          Instruction Manual
          Small Screwdriver
          Neckstrap

REQUIRES: Servos of modeler's choice (analog servos cannot be used if
            FASSTest 12CH mode is used)

SPECS:      Transmitter;
          Transmitting Frequency: 2.4GHz band
          System: FASSTest18CH, FASSTest12CH, FASST MULT, FASST7CH, T-FHSS,
            S-FHSS switchable
          Power Supply: 6.6V FT2F2100BV2 LiFe battery

            Receiver;
          Receiving Frequency: 2.4GHz FASSTest system
          Power Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
          Current drain: 75mA
          External voltage Port: 0 - 70V DC
          Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
          Weight: 0.38oz (10.9g)
          Antenna Length: 5-3/4" (146mm)

More Information
Numéro distributeur FUTK9510
Country Taiwan
Brand Futaba
ARF N/A
Giftcards Type N/A
