O.S. Engine - .05 BL Motor OMA-3805-1200 - OSMG9505
CAD $79.79
Availability:
In stock
Only 1 left
SKU:
2019
Distributor Number
OSMG9505
Manufacturer Number
OSMG9505

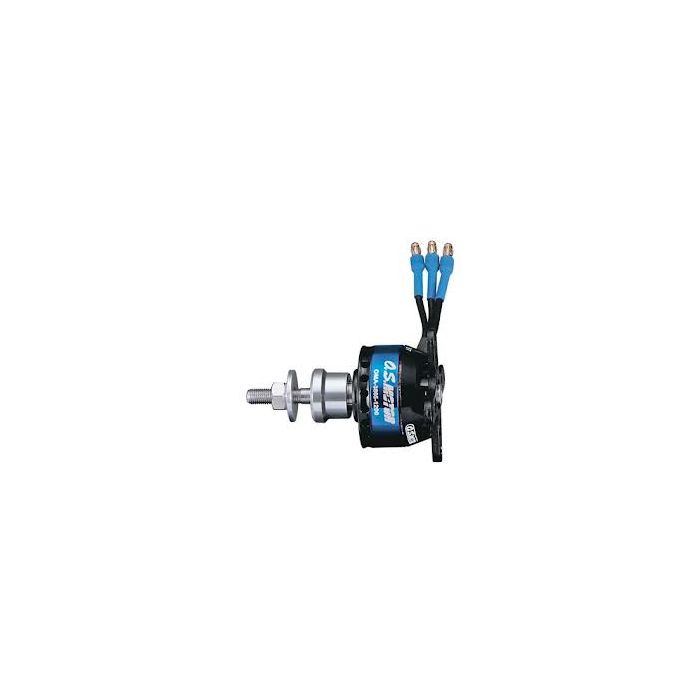

- This is the .05 OMA-3805-1200 Brushless Electric Motor from O.S. Motors.
Features:
- For .05 size airplanes
- Stainless steel prop shaft
- Rigid rear mounting design
- Two year limited warranty through Hobby Services beginning at date of purchase
Includes:
- .05 Brushless Electric Motor with Backplate,
- 3.5mm Gold Plated Male Plugs attached to leads,
- Three 3.5mm Female Plugs with Shrink Wrap, and Instruction Sheet
Requires:
- 20 - 40A Brushless ESC
- Slow flyer type electric propeller from 9x6 to 11x7 in size depending on specific aircraft
Specs:
- Rated Power: 250W
- Rated Voltage: 11.1mm
- Rated Current: 20A
- Maximum Current (5 sec): 30A
- No Load Current: 1.1A
- Phase Resistance: 65.1 miliohms
- Maximum Efficiency: 80%
- kV: 1200
- Turns: 22
- Poles: 14
- Shaft Diameter: 0.16" (4mm)
- Shaft Length: 0.46" (11.7mm)
- Weight: 2.7oz (76g)
- Lead Wire Length: 1.96" (50mm)
- Lead Wire Gauge: 17AWG
- Length of Motor Can: 1.1" (27.5mm)
- Diameter of Motor Can: 1.45" (37mm)
- Prop Washer Diameter: 0.75" (19mm)
- Thickness of Motor Mount: 0.118" (3mm)
- Width of Motor Mount: 1.96" (50mm)
- Height of Motor Mount: 1.96" (50mm)
Comments:
- Nomenclature is defined as follows:
- 0MA means 0.S. airplane motor
- First two digits are the rotor diameter
- Second two digits are the length of the magnets
- Last digits indicate the kV of the motor
More Information
Distributeur numero
OSMG9505
Numéro Manufacturier
OSMG9505
Country
USA
Brand
O.S. Engine
UPC
4531028500266
